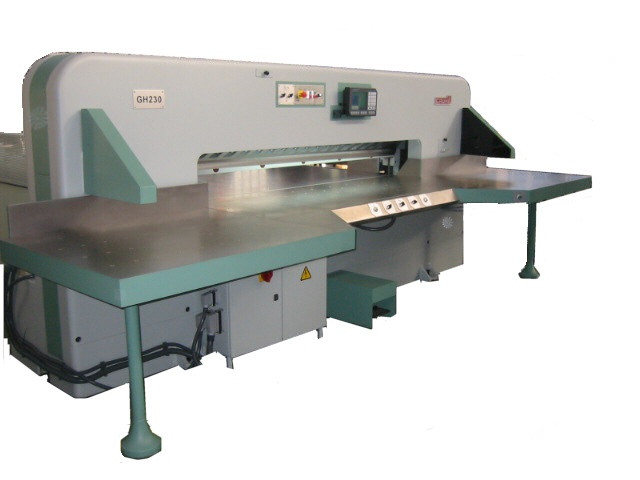

Cauhe Guillotine

The Cauhe GH range of guillotines are
available in cut sizes from 120cm through to 420cm and so are suited to
those with high volume wide format cutting requirements.  The standard
double-pull down knife action, (twin gearbox knife drive) provides for greater
power and increased precision cutting.  Safety features being a priority
the Cauhe guillotine range is equipped with dual channel safety PLC, cross
monitored functions on all safety controls and is fully compliant with
UK P.I.A.C safety guidelines and European Standard EN1010 part 3
guillotine safety. Guillotine is supplied with High speed steel blade as
standard.

Features include:

• Monitored duel
  controlled pneumatic fail-safe clutch & brake system
• Variable
  pressure hydraulic clamping, interlocked with front guarding system.
• Twin precision
  rotating ball screws driving the back-gauge, (difficult to knock out of
  square).
• Extra cut
  buttons, to enable cutting from left, centre and right side of machine.
• Monitored
  pneumatic safety bolt.
• Simple and
  safe knife change system.
• Stainless
  steel machine table.
• Microcut plus
  colour flat screen digital programming system.
• Ultra-fast
  back gauge drive to assist with rear loading.
• Movable
  control station mounted on H section rails at the front of the
  machine.
• Air bed and
  1000 x 1000mm Air side tables.
• Infra red
  front table guarding system with time delay and cross monitored cut
  buttons.
• Rear table
  guarding.
