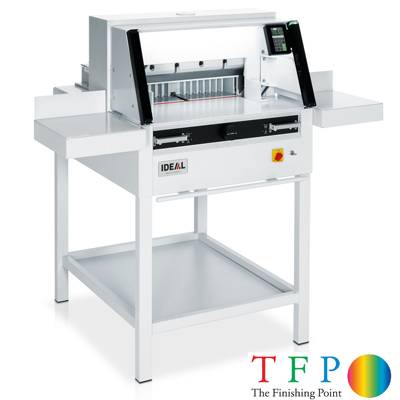

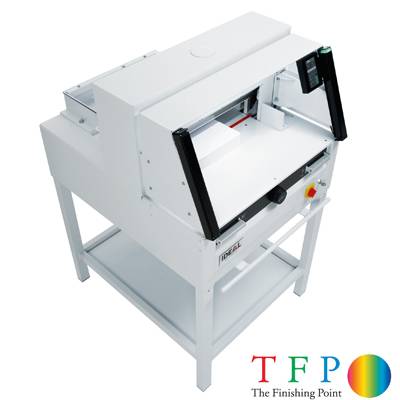

Ideal Guillotine 4860

The IDEAL 4860 is a professional paper cutter for demanding cutting processes up to DIN A3+ (329 × 483 mm).  With a cutting length of 475 mm and a cutting height of up to 80 mm, this model processes large stacks of paper safely, efficiently and with high precision – ideal for digital printers, finishing companies or in-house printing departments with complex requirements.

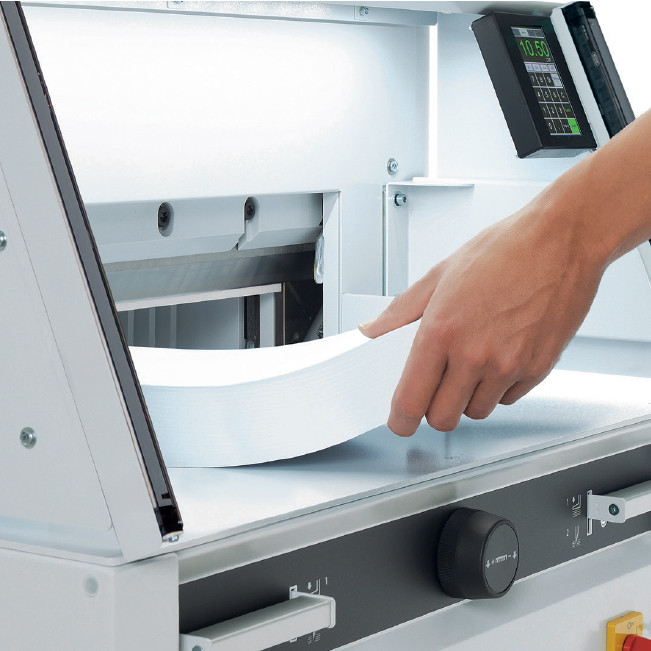

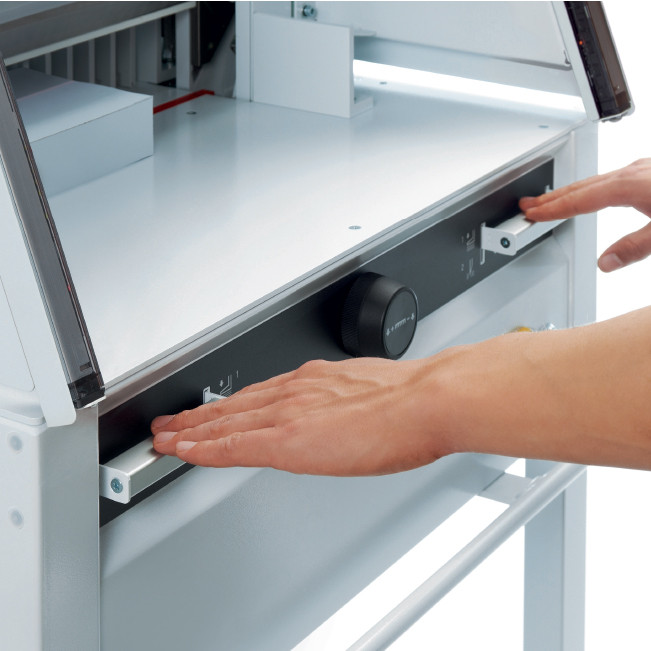

The patented EASY-CUT two-stage controls ensure comfortable, ergonomic operation with maximum safety. The Safety Cutting System is complemented by an integrated IR safety light curtain on the front table, which ensures a safe workflow without manual intervention. The safety concept is completed by a rear table cover, a main switch with lock and an automatic return of the knife and press beam.

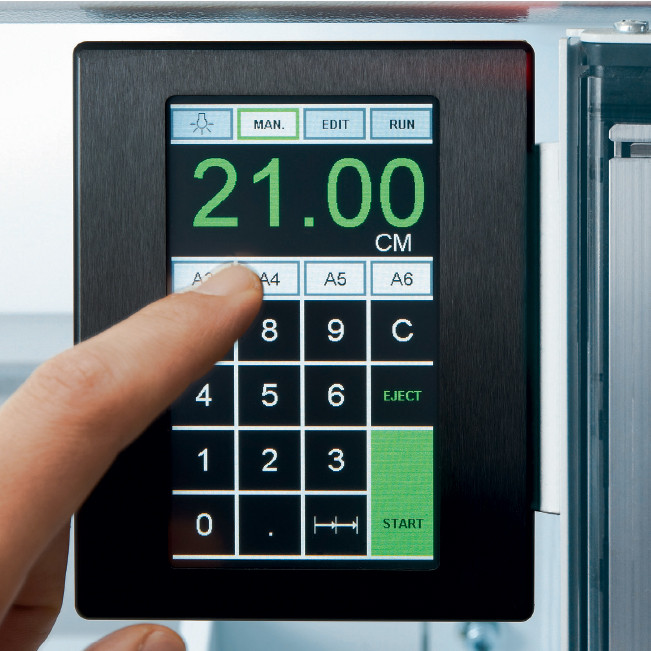

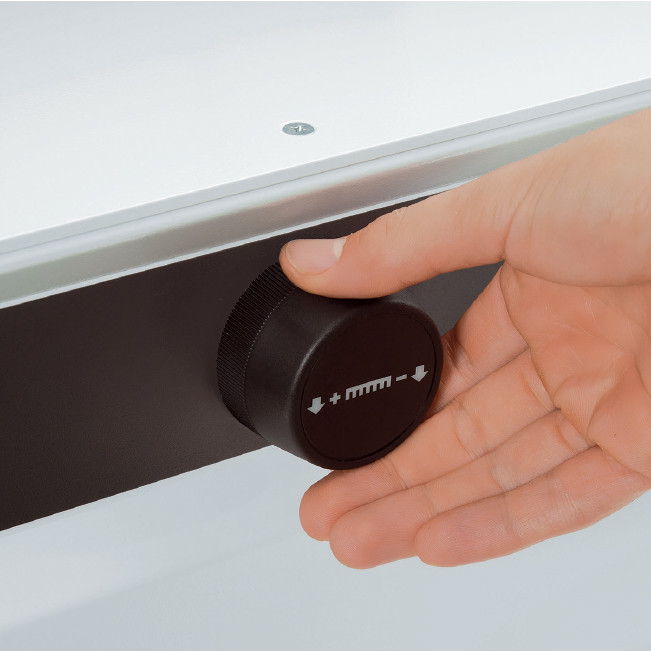

The heart of the control system is the touchpad with multilingual operation. The electrically operated backstop can be precisely controlled via 99 programs with 99 steps each – including direct input, chain dimension function and EJECT command.  Fine adjustment is done via the electronic handwheel with seamless adjustable speed in the range of 1/10 mm.  Pre-programmed DIN dimensions and memory buttons further simplify the workflow.

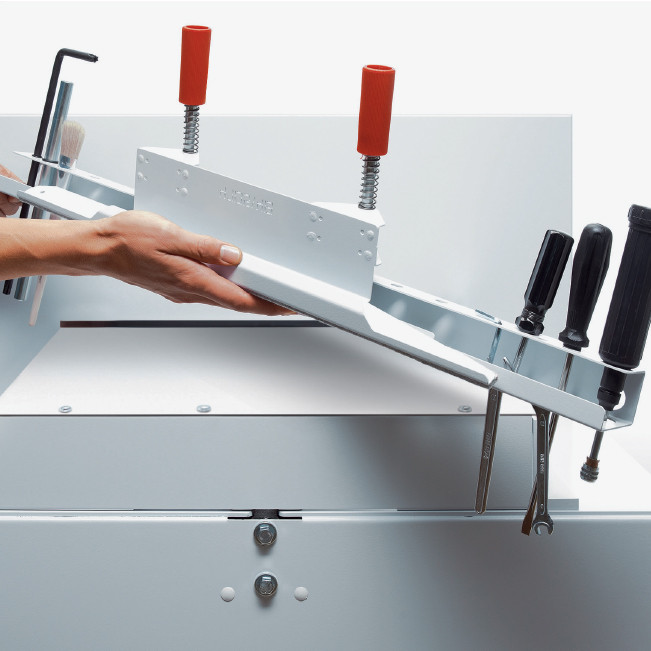

In addition to the electromechanical blade drive, the optical cutting indicator with bright LEDs and the three-stage LED work area lighting ensure precise cutting results.  Simple maintenance is guaranteed: the blade can be changed without tools via an integrated device with a covered blade edge.

The robust all-metal construction, combined with a solid steel blade carrier and hardened blade guides, stands for the highest quality, repairability and durability - Made in Germany.

Why Buy? For Business Owners

If space is a premium or your existing guillotine is slowing down production this model is just for you. The use of the IR Safety Curtain makes the Ideal 4860 around 20% more productive than the alternative Ideal 48 sized models with the physical guard. As with all Ideal guillotines it is made in Germany to the highest specifications and safety standards.

Why Buy? For Operators

The 99 Programs each with 99 steps means all the most common jobs can be input and stored in the machine. Safety is first class because of the two handed operation and IR Safety Curtain.

Highlights

• IR Safety Curtain - First guillotine of this size from Ideal to have this feature
• 99 Programmable Control
• Accurate to 0.1mm
• Memory key for repeat jobs
• Power back gauge
• Independent clamp movement
• Digital readout for cut measurements
• 450mm maximum cut length, 32mm minimum cut length
• 80mm cut height
• Offers ability to cut SRA2 to SRA3

Typical Applications

• Business Cards
• Stationery
• Leaflets
• Flyers
• Labels
• Posters
• Delicate papers - Can be used with magnetic clamp pads for soft impression
• Cutting sheets of paper to required sizes (SRA2 to SRA3)
• Finishing books up to 80mm thick
• Cutting spines for scanning
