MAMO – VELA – Semi-Automatic Single-sided – Digital Laminating Machine

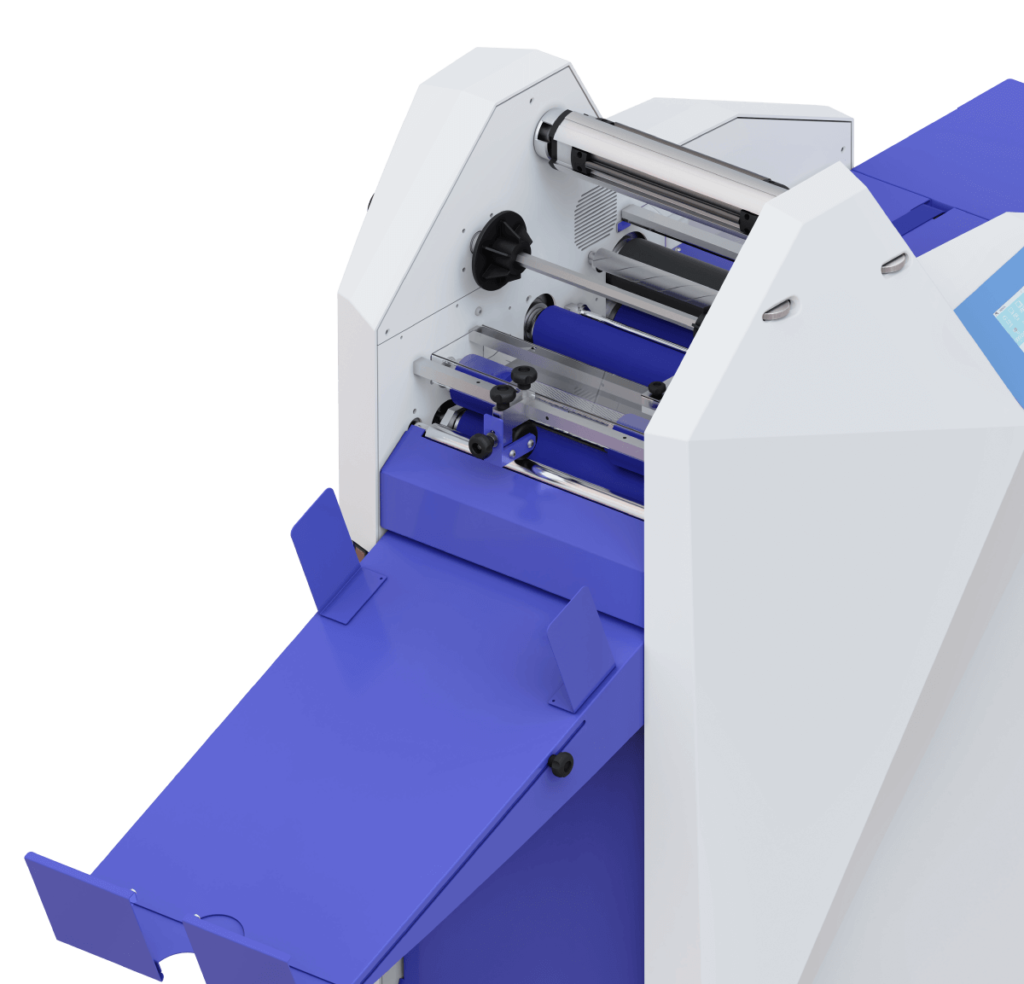

The MAMO Vela is
a semi-automatic single-sided laminator with automatic overflow and separator,
designed for simple and efficient operation; capable of supporting intensive work
cycles.  The Vela laminator guarantees a wide range of paper sizes and supports materials up
to 500 g/m2.  With a production capability of up to 7 m/min, it ensures high
performance. It can be equipped with the optional multi-function high stack suction feeder
that allows automatic operations without operator supervision.

With Vela a perfectly laminated sheet can be guaranteed due to the mechanical pressure with electric activation that
allows to start laminating by simply pressing the start button. It is
equipped with hand sheet feeder with automatic overlapping and automatic
bursting system, which allows a smooth lamination process for the operator. All
settings can be managed in few seconds directly from the intuitive
touchscreen display.

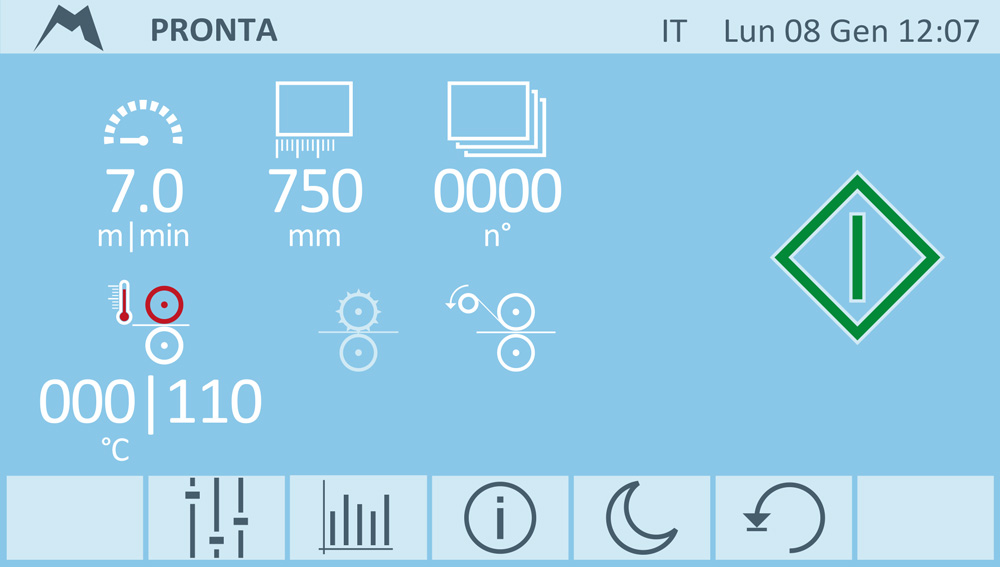

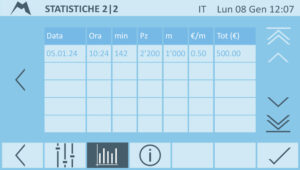

Vela is equipped with an intuitive interface thanks to the 4.3” touchscreen display, where all the job settings can be fully customized according to needs. Among the features of the new software, the possibility to obtain production reports and integrating the machine in an Industry 4.0 perspective. The innovative user interface allows an optimal user experience by guiding the operator in setting the optimal parameters required for each process with extreme ease.

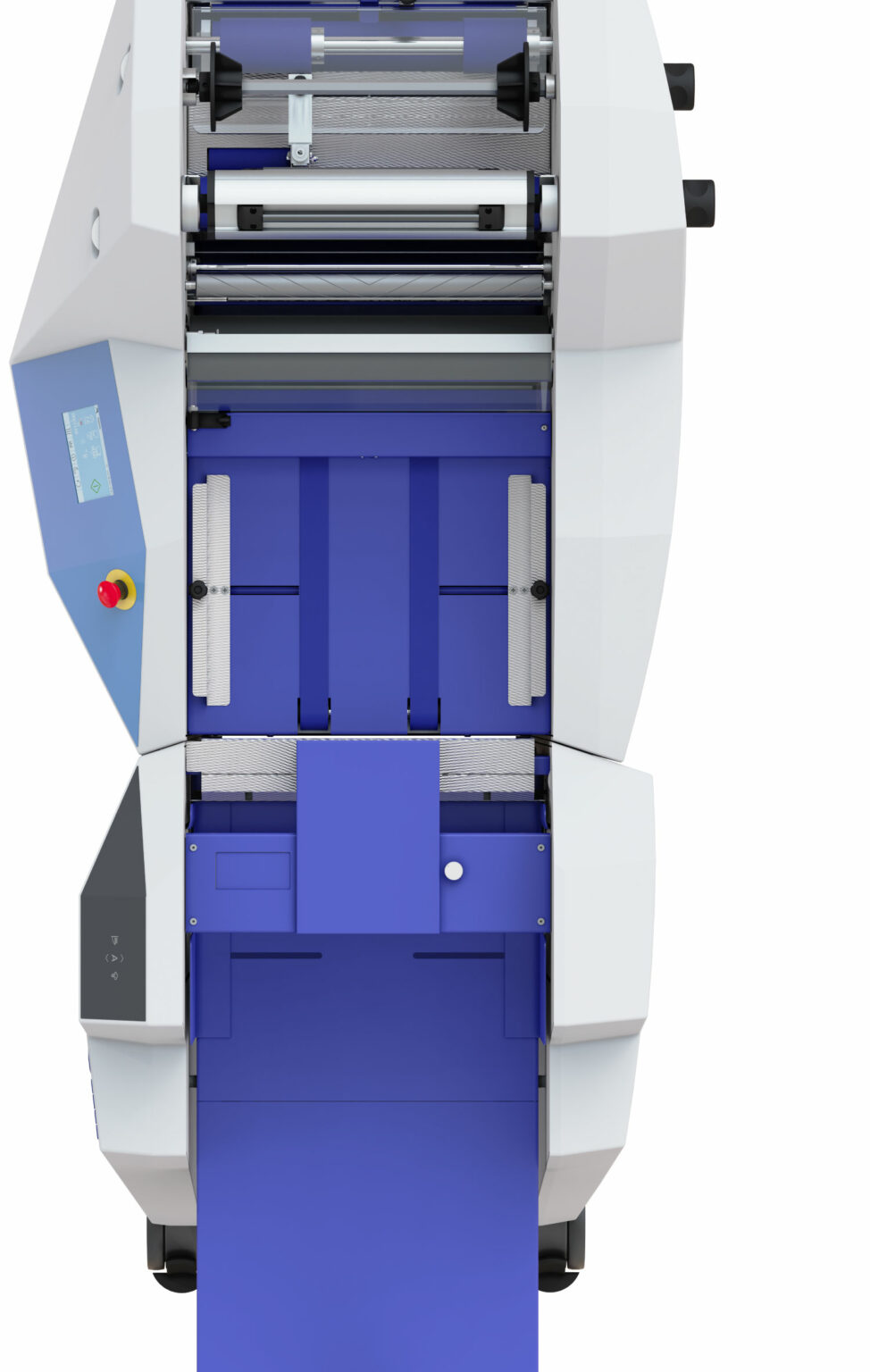

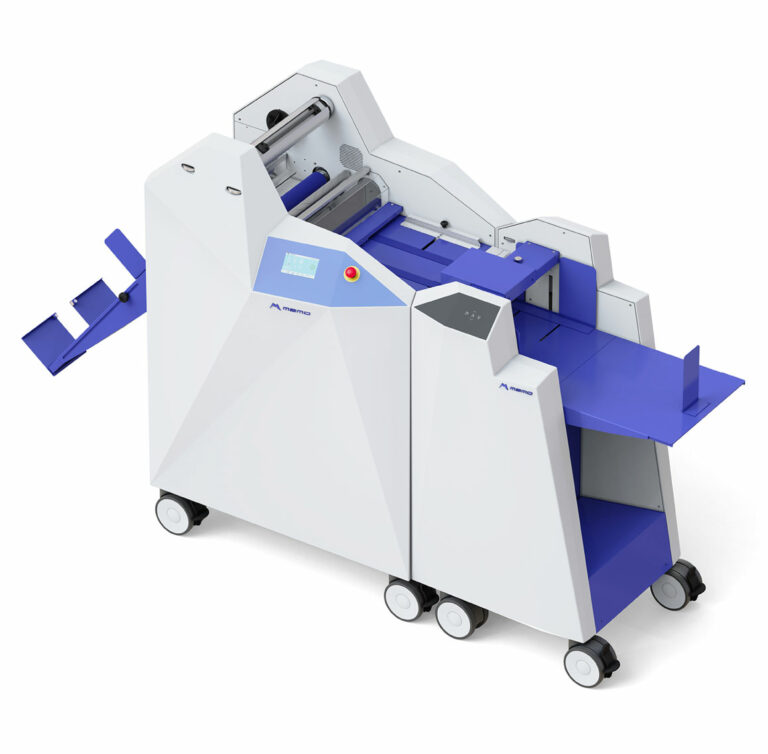

Call it Alo: an optional high pile suction feeder, which makes the lamination process automatic.  The Alo is so versatile that it can be used either on Vela and also on the Flecto creasing machine. Equipped with precise air flow adjustments that allow to process even the most difficult cards electrostatically charged. The patented suction system optimizes the grip of the sheets, even with slippery papers, and operates with low noise, since it does not require a vacuum pump. Alo can hold sheets up to 999mm in length and a stack height of 150 mm, increasing the versatility of the machine.

Highlights

·
Hand sheet feeder with automatic overlapping and bursting system.

·         Manual Sheet feeding system - (Optional Alo pile suction feeder available)

·
Max working width: 340 mm

·         Max paper width: 353 mm

·
Max laminating width: 340 mm

·
Max paper thickness: 500 gsm

·
Min paper thickness: 120 gsm (slight
differences may occur on paper type)

·
Max temperature: 150° C

·
Laminating speed: 7mt/min

·
Control panel with pre-set function

·
Roller pressure adjustment: manual

·
Power consumption: 2200 W

·
Power requirements : 230 V -
50/60 Hz

·
Dimensions and Weight

·
Dimension (mm): 1937 x 722 x 1318 mm

·
Weight: 150 Kg

·         Optional Alo - High pile suctional feeder (Upgrade the laminating process to automatic)

·

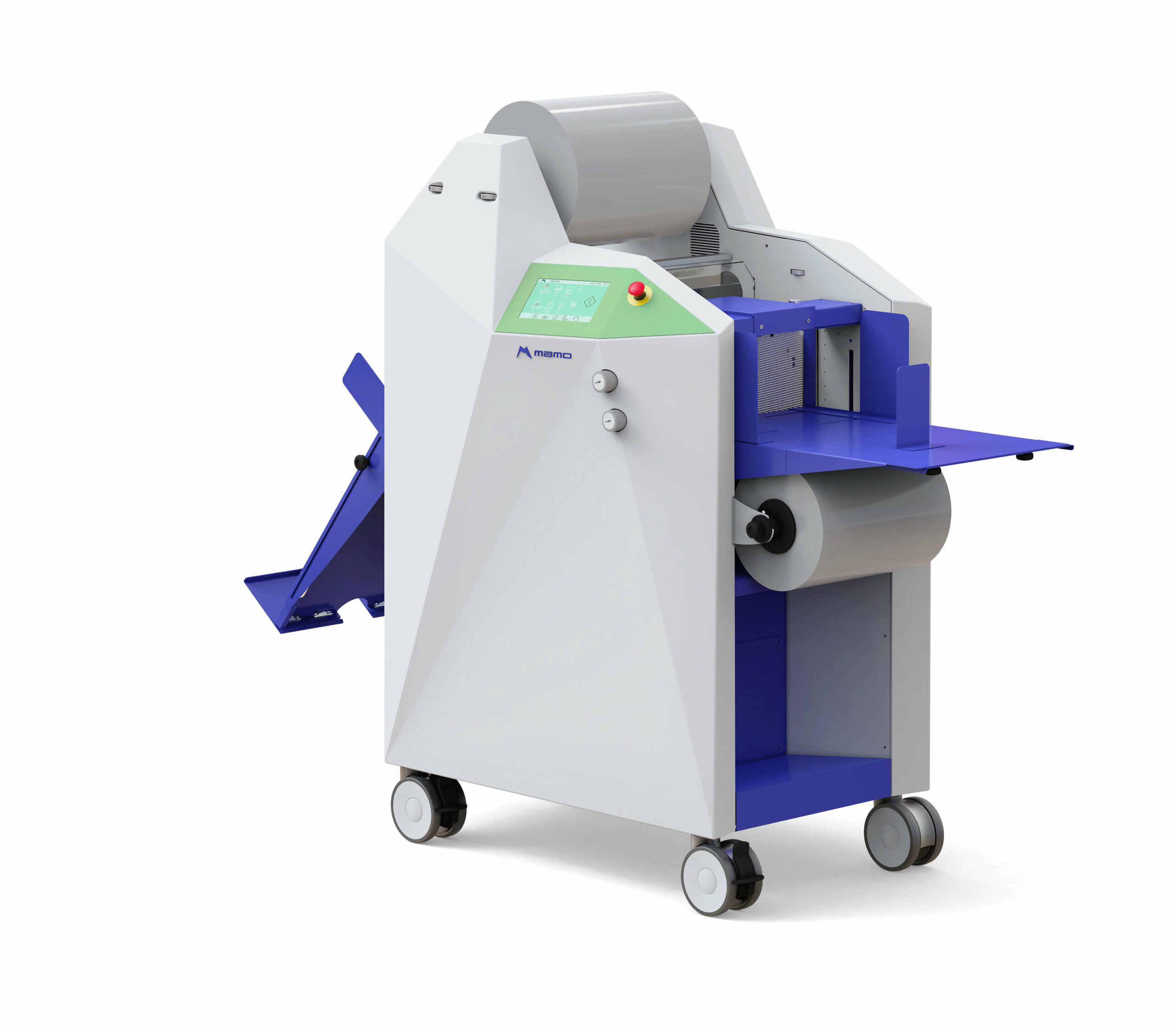

Optional -3000mt upper and lower reel holders: (as shown on the main picture) ideal to reduce the laminating
costs using standard Off-set OPP film thanks the stronger pressure provided by
the pneumatic       system (adhesion may vary according to the film and to the
printed material).

·

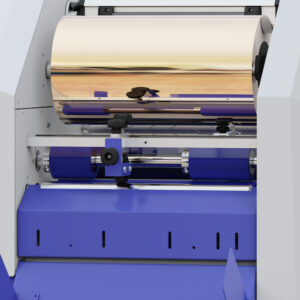

Optional - Foiling kit:
sleeking and foiling are possible on this machine thanks to the optional
rewinding kit.

Typical Applications

• Business Cards
• Greeting Cards
• Book Covers
• Menu Cards
• Post Cards
• Holographs
• Foiling
• Spot Lamination
