MAMO – Veladuo Digital Laminating Machine – Pneumatic

The MAMO Veladuo is a single or double-sided automatic laminator with automatic separator.
Ideal for single side cover lamination and encapsulation.

Automatic
separation will be performed either on single and double side BOPP laminated
sheets thanks the powerful built in tear-off system. 1000mt BOPP laminating
rolls can be installed on top and bottom reel holder in the standard version
but optional 3000mt kit (see main picture) will turn this machine to a heavy
duty and cost-effective laminating solution.

Thanks to the pneumatic
pressure integrated in this model, 3000mt Standard Off-set OPP rolls can be
used on this machine to reduce laminating costs, while delivering a perfect laminating
result (please note. lamination speed and result may vary accordingly to
different materials used). 75mm diameter laminating rolls will provide perfect
lamination results at maximum speed.

Independent adjustable temperature
of the two laminating rollers will preserve the quality of back print in case
of single side lamination. Automatic high pile suction feeder controlled by
machine’s PLC will adjust feeding speed accordingly to laminating speed to
ensure the laminator keeps a constant gap or constant overlap between sheets
for accurate separation.  Adjustable de-curling bar provides flat results

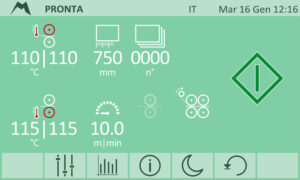

on single side laminations. All the settings and operations are controlled
through one single touch screen control panel engineered to make machine’s
setting fast and easy.

Highlights

·
Fully
Automated Feed

·
Max working width: 340 mm

·         Max laminating film width: 350 mm

·
Max paper width: 370 mm

·
Max paper thickness: 500 gsm

·
Min paper thickness: 120 gsm (slight
differences may occur on paper type)

·
Max temperature: 150° C

·
Independent lower roller heating system
can be switched off in order to allow single side (upper) hot lamination

·
Laminating speed: 10mt/min

·
Control panel with pre-set function

·
Roller pressure adjustment: manual

·
Power consumption (W): 2200 W

·
Power requirements: 230 V -
50/60 Hz

·
Dimensions and Weight

·
Dimension (mm): 1937 x 722 x 1318 mm

·
Weight: 200 Kg

·
Optional -3000mt upper and lower reel holders: (as shown on the main picture) ideal to reduce the laminating
costs using standard Off-set OPP film thanks the stronger pressure provided by
the pneumatic   system (adhesion may vary according to the film and to the
printed material).

·
Optional - Foiling kit:
sleeking and foiling are possible on this machine thanks to the optional
rewinding kit.

Typical Applications

• Business Cards
• Greeting Cards
• Book Covers
• Menu Cards
• Post Cards
• Holographs
• Foiling
• Spot Lamination
