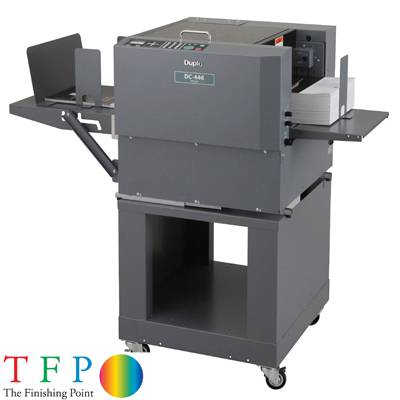

Duplo DC446 Digital Feeder (150CR & 350CR)

Digital printing requires creasing before folding in order to prevent unwanted cracking and the DC446 Creaser is the ideal machine for this task. Designed to cope with short runs, the DC446 incorporates an ultra quick set up and multiple creasing options to handle a wide range of products. Optional perforating and slitting modules further extend the usefulness of the DC446 Creaser. This ultra reliable crease solution can also be used as a Digital Feed engine when combined with either the Duplo DBM150T or the Duplo DBM350T to create the CR systems. The modular design of both solutions ensures that either the DC446 Creaser or the DSF2200 Digital Feeder can be quickly added on to an existing system to automate your production.

See also Duplo 150CR and Duplo 350CR.

Why buy? For business owners

The Duplo DC446 Creaser has been designed to partner light production digital colour presses, though its ability to handle A4 sheets at 50 a minute lets it keep pace with more productive digital presses. Creasing is necessary to overcome toner cracking which can plague digitally printed pages, creasing eradicates this issue and results in a quality finished product. The ability to crease up to 15 times in 0.1mm increments covers a huge range of product types that any customer might require.

Why buy? For operators

Step by step touch panel set up stores and recalls the programmes for 30 jobs to save time on repeat product types. A 100mm feed tray capacity and 110mm delivery tray means the DC445 Creaser can run unattended leaving an operator to attend other tasks. Suction feed removes the risk of marking with an optional air knife to help separate sheets ahead of feeding if static is an issue. An optional ultra sonic double sheet detector prevents miss-feeds. Skew and shrinkage adjustments compensate for any image placement issues.

Highlights

• Up to 15 Creases per sheet

• 30 Job programmable set up and storage

• Up to 50 A4 sheets per minute

• 110-350gsm nominal paper range

• 110mm Feed Pile Height for unattended operation

• Suction feed to eliminate marking (No compressors so also quiet)

• 0.1mm increments and +/- 0.3mm accuracy

• Optional perforating and slitting modules

• Step by step setup panel

Typical Applications

• Greeting Cards

• Two and Three way folded leaflets

• Tickets, Brochures

• Book Covers

• CD/DVD Covers

• Menu Cards

• Post Cards

• Flyers & Mailers
