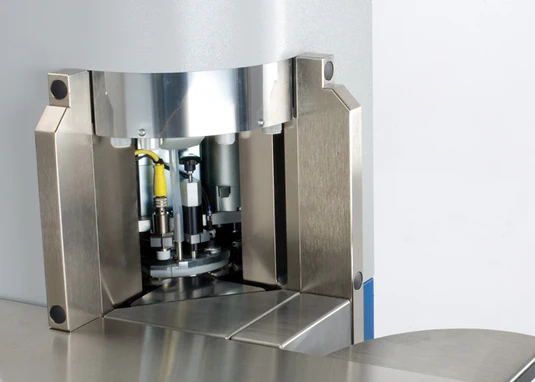

VICOUNT 4 D - (DISC) PAPER COUNTING MACHINE

The Vacuumatic Vicount 4 D is the benchmark for accurate, efficient paper counting and batching.

The Vicount 4 is Vacuumatic’s new generation of single-head paper counting machines for the Security and Commercial Printing industries.  Drawing on over 50 years of experience, the Vacuumatic Vicount 4 is the new benchmark for accurate, efficient paper counting and batching.

Pin-&-Blade paper counting technology has been used in Vacuumatic machines for many generations with a range of formats and options to suit the widest range of applications. Vicount 4 is without doubt the most flexible paper counting machine on the market.

Available with either Disc or Pin-&-Blade counting technology and a range of formats and options to suit the widest range of applications, Vicount 4 is without doubt the most flexible paper counting machine on

the market.  The colour touchscreen with icon-based graphics ensures that even inexperienced users can operate the machine efficiently.  Options such as Air tables, coupon attachments and a wide variety

of Discs and suction blades extend the range of papers and materials that can be accurately counted.

From the basic benchtop machine to the top-of-the- range industrial version, from gift wrap to tax stamps, Vicount 4 is already exceeding the demands of clients around the world.

Typical Applications

• Commercial & Security printing
• Tax Stamp, Paper & Padding manufacture
• Range of table formats inc air float
• Tab insertion as standard (5 Port Disc only)
• Up to 10,000 sheets per minute with 10 Port High Speed Disc version.
• Optional adaptor to quickly and easily count packs of 100 notes, making the Vicount4 Disc without doubt the most flexible paper counting machine on the market.

Technical Specifications and Options:

• Multicolour Touchscreen User Interface
• Large Vacuum Pump
• Counting technology - Pin-&-Blade
• Maximum counting speed *   - 500 to 2,500 sheets per minute
• Maximum counting speed with tabbing *   - 2,500 sheets per minute
• Count cycle time*   - 3 x 500 sheets in 60 secs
• Maximum pile height - 220 mm
• Min. Sheet Size – 85mm x 110mm
• Material weight range* - 25-240 gsm
• Batch size - 5-9, 999
• Airborne noise - up to 78dB(A)
• Maximum total count - 999,999
• Insertion – 5 to 9.999Tape
• Table format small - 600 x 400 mm – Please see Vicount brochure for additional table sizes.
• Electrical -: Interface Box - 230v/50Hz or 115v/60Hz
• Machine Dimensions - Table Size only: 400mm x 600mm
• Net weight – Approx. 200kg
• CE Certification to conform to application Harmonised European Standards

* Results of tests carried out under factory conditions
