Description

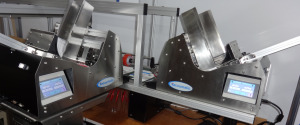

The Vacuumatic TCF machine offers users the ability to count, batch and dispense a wide range of products and materials that are difficult or impossible to count using traditional methods.
All the features and benefits of the stand alone version of the Vacuumatic Thickness Compensation Friction feeder (TFF), but without the delivery tray making it easy to mount over or on existing processing systems for full integration with flow lines. Another versatile friction feeder and batcher. Also now with easier integration via RS232 communication. The Vacuumatic TCF machine offers users the ability to count, batch and dispense a wide range of products and materials that are difficult or impossible to count using traditional methods. Typical applications include the feeding and counting of envelopes (empty or stuffed), booklets, cards, bags, flat boxes and pharmaceutical inserts. With the ability to feed products up to 15 mm thick. The TCF2 has a simple lever operation to allow even thicker products to be processed, in 5 steps: 0-1 mm, 0-5 mm, 3.5-8.5 mm, 7-12 mm, 10.5-15 mm. The maximum material size is300mm by 325mm.
The unique self-compensating separator system Enables the TCF2 friction feeder to feed items reliably and consistently even when the thickness is variable, either from piece to piece – such as filled envelopes – or across each individual item such as flat bottom bags or folded cartons. With its adjustable delivery tray and ease of set up and operation, the TCF2 stand-alone machine is the most versatile feeder, counter and batcher on the market.
| New touch screen LCD controller | ||
| Overall Weight | - In Line Feeder is 20.1 kg or Stand-Alone Feeder is 32 kg | |
| Input Voltage Range | - 90-264 VAC, 47-63 Hz | |
| Max. Input Current | - 1.7A at 115VAC 0.9A at 230VAC | |
| No Load Input Power | - Less than 0.5W | |
| Output Power | - 180W max. | |
| Output Voltage | - 24 VDC | |
| Width of Sheet Leading Edge | - 56 to 325mm | |
| Length of Sheet in Direction of Feed | - 85 to 325mm | |
| Batch size | - 1 to 9999 | |
| Sheet Thickness | - up to 5mm | |
| Hopper Capacity Stack Height | - up to 230mm Total Stack Weight : up to 5kg | |
| Delivery Tray Capacity (where fitted) | - up to 115mm | |
| Speed* | - The output belt speed of the feeder is operator adjustable up to 1.8m/s | |
| Options | - Label Printer | |
| Machine Dimensions | - 940 mm x 426 mm x 606 mm | |
* The output rate is dependent on the size of the sheet being fed. Typically, an A5 size sheet fed long edge first could output at up to 8 sheets per second. All counting speeds, cycle times and paper weight ranges stated are the results of tests carried out under factory conditions. Actual results may vary depending on paper weight, quality, and presentation. Other variables such as batch size, disc type or blade selection may also affect performance. Vacuumatic have made every effort to ensure the accuracy of the information contained within this brochure. Vacuumatic operate a research and development programme which drives continuous product improvement. The services and product specifications contained within this brochure may change without notice. Vacuumatic have made every effort to ensure the accuracy of the information specified above. Vacuumatic operate a research and development programme which drives continuous product improvement. The services and product specifications contained above may change without notice.
| New touch screen LCD controller | ||
| Overall Weight | – In Line Feeder is 20.1 kg or Stand-Alone Feeder is 32 kg | |
| Input Voltage Range | – 90-264 VAC, 47-63 Hz | |
| Max. Input Current | – 1.7A at 115VAC 0.9A at 230VAC | |
| No Load Input Power | – Less than 0.5W | |
| Output Power | – 180W max. | |
| Output Voltage | – 24 VDC | |
| Width of Sheet Leading Edge | – 56 to 325mm | |
| Length of Sheet in Direction of Feed | – 85 to 325mm | |
| Batch size | – 1 to 9999 | |
| Sheet Thickness | – up to 5mm | |
| Hopper Capacity Stack Height | – up to 230mm Total Stack Weight : up to 5kg | |
| Delivery Tray Capacity (where fitted) | – up to 115mm | |
| Speed* | – The output belt speed of the feeder is operator adjustable up to 1.8m/s | |
| Options | – Label Printer | |
| Machine Dimensions | – 940 mm x 426 mm x 606 mm | |
* The output rate is dependent on the size of the sheet being fed. Typically, an A5 size sheet fed long edge first could output at up to 8 sheets per second. All counting speeds, cycle times and paper weight ranges stated are the results of tests carried out under factory conditions. Actual results may vary depending on paper weight, quality, and presentation. Other variables such as batch size, disc type or blade selection may also affect performance. Vacuumatic have made every effort to ensure the accuracy of the information contained within this brochure. Vacuumatic operate a research and development programme which drives continuous product improvement. The services and product specifications contained within this brochure may change without notice. Vacuumatic have made every effort to ensure the accuracy of the information specified above. Vacuumatic operate a research and development programme which drives continuous product improvement. The services and product specifications contained above may change without notice.
